5 Axis Cutting Head
Product Details:
- Product Type 5 Axis Waterjet Cutting Head
- Material Stainless Steel, Aluminum Alloy
- Capacity High Precision Cutting
- Voltage 380V
- Power Supply AC 50/60Hz
- Motor Power 3 kW
- Cutting Accuracy 0.05 mm
- Click to View more
X
5 Axis Cutting Head Specification
- Customizable (Based on Machine)
- 0.05 mm
- AC 50/60Hz
- 3 kW
- Stainless Steel, Aluminum Alloy
- 380V
- High Precision Cutting
- Approx. 20-25 kg
- Gantry Type Compatible
- Up to 4000 bar
- 5 Axis Waterjet Cutting Head
- Metal, Glass, Ceramic, Composite, Stone
- Dust and water-resistant seals
- Remote / Panel Control
- Servo Motor
- Compatible with major CAD/CAM
- ±0.01 mm
- Integrated Water Cooling
- ±90° tilt, 360° rotation
- Precise 3D Contour Cutting, Bevel Cutting, Complex Shaping
- X, Y, Z, A (tilt), C (rotation)
- 10,000 mm/min
- Bolt-On / Modular Head
- 0.25 mm - 0.35 mm
- Low maintenance design
- 0°C to 45°C
Product Description

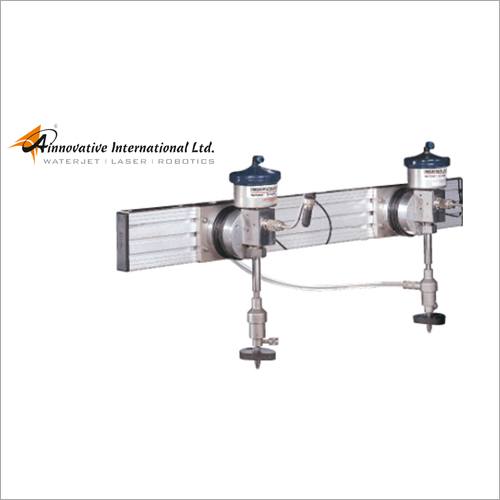

We are dealing in the manufacturing and supplying of 5 Axis Cutting Head which is designed for the high speed multi-axis waterjet cutting machineries to create a thin steam of water added with powdered abrasive materials for the machining of the metallic and alloyed parts. Top grade alloyed steel is used for the fabrication of this component part which gives higher durability and robustness. The offered 5 Axis Cutting Head availed by us is designed with high precision and accuracy that makes it very easy to install.
Advanced Axis Movement and Rotation
The cutting head operates along five axes: X, Y, Z, A (tilt 90), and C (360 rotation), allowing intricate and multidimensional cutting with reliable precision. Its modular and bolt-on mounting make it adaptable to a variety of gantry-type cutting tables, ensuring high versatility across complex fabrication needs.
Superior Precision and Performance
Designed for demanding industries, this cutting head offers a cutting accuracy of 0.05 mm and a fast traverse speed of 10,000 mm/min. Powered by a robust 3 kW servo drive system and engineered from stainless steel and aluminum alloy, it ensures consistent performance, even under intense pressure up to 4000 bar.
Efficient Cooling and Durable Construction
An integrated water cooling system maintains optimal operating temperatures even during extended use, while dust and water-resistant seals safeguard internal components. This design maintains a low maintenance profile and is fit for environments with temperatures from 0C to 45C, making it highly dependable.
Seamless Software and Control Integration
The cutting head is compatible with all major CAD/CAM software, streamlining setup and operation for ease-of-use. Operators can control the system remotely or via an intuitive panel, offering flexibility and precision during complex cutting processes.
FAQs of 5 Axis Cutting Head:
Q: How does the five-axis movement enhance the cutting process?
A: The five-axis movementX, Y, Z, A (tilt), and C (rotation)allows the cutting head to maneuver with exceptional flexibility. This enables the creation of complex 3D shapes and bevels, surpassing traditional cutting heads limited to simpler geometries.Q: What materials can be precisely cut with this head?
A: This cutting head effectively handles a wide range of materials, including metals, glass, ceramics, composites, and stones. Its robust design and adaptable settings make it suitable for diverse industrial applications.Q: When is integrated water cooling necessary in a cutting head?
A: Integrated water cooling becomes essential during high-speed or prolonged cutting sessions, as it dissipates heat generated by the high-pressure and high-speed processes, ensuring sustained precision and extending component life.Q: Where can this 5 Axis Cutting Head be mounted?
A: The head features a bolt-on/modular configuration designed for compatibility with various gantry-type cutting tables. This ensures straightforward installation for manufacturers seeking flexibility or retrofitting existing setups.Q: What software systems is this cutting head compatible with?
A: It is compatible with all major CAD/CAM software, making it easy to integrate into established design-to-manufacture workflows and optimize the programming of complex cutting paths.Q: How does the low maintenance design benefit my operation?
A: The low maintenance architecture, coupled with dust and water-resistant seals, reduces downtime and servicing needs, resulting in higher productivity, lower operational costs, and consistent performance.Q: What are the main advantages of using this cutting head for 3D contour and bevel cutting?
A: The main advantages include high-precision accuracy (0.05 mm), intricate multi-axis maneuverability, rapid traverse speeds, reliable cooling, and the ability to produce complex shapes across various hard and soft materials with minimized manual intervention.Tell us about your requirement
